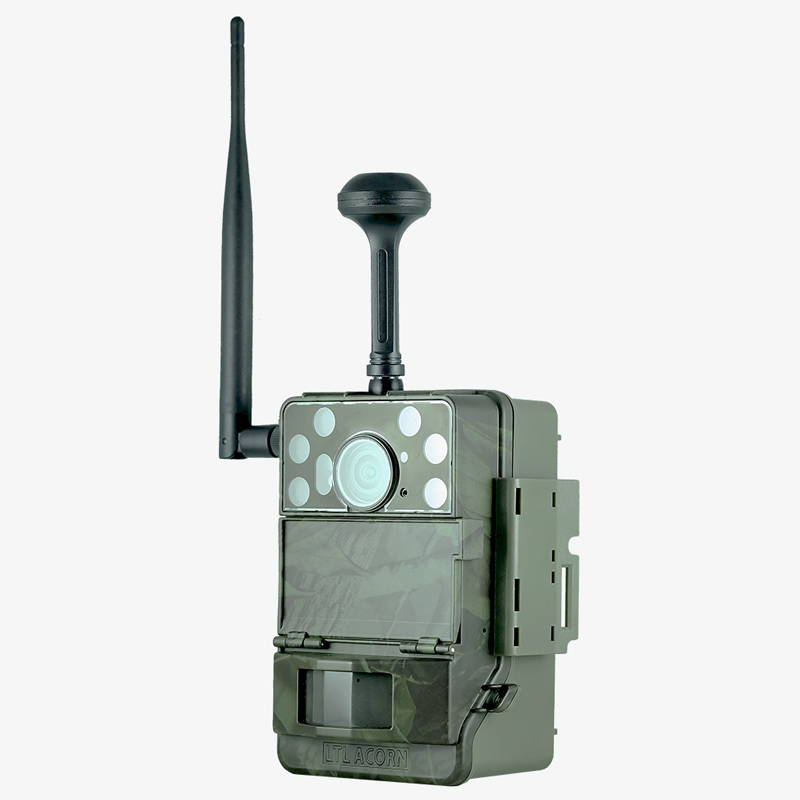

4G Cellular Trail Camera

4G Cellular Trail Camera is selected for outdoor monitoring, hunting and property observation. Review the verified product features, specifications and images below.

Features

Picture resolution is up to 30MP.

Real high-definition video of 1080P / 720P / VGA with audio record, H.264/AVC format.

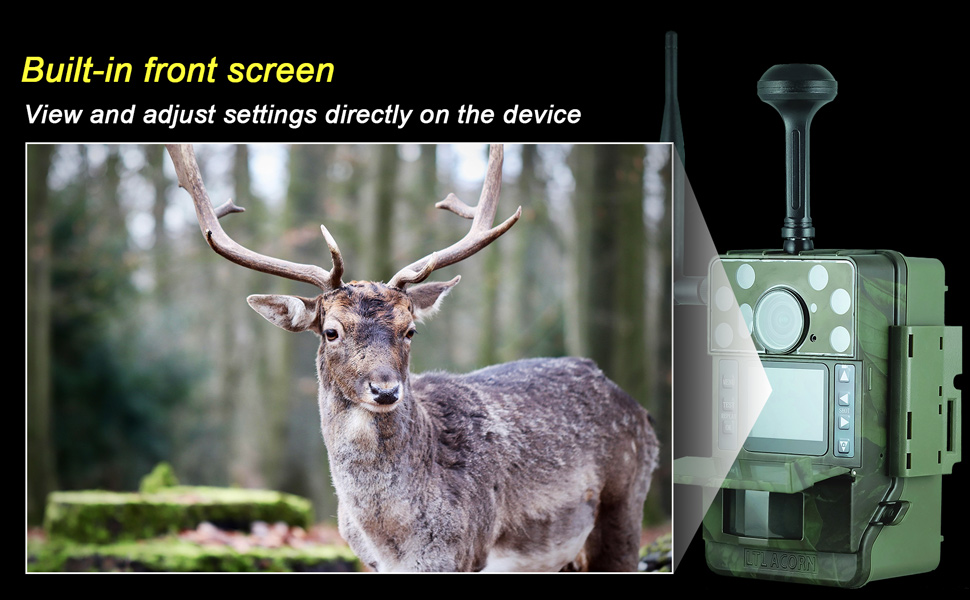

2.0” TFT color LCD display, easy to set parameters, preview, replay photos and video.

LTL-6630-4G with 60 degrees 7G high-quality wide-angle lens, can greatly expands the shooting range.

With 4G LTE wireless transmission module, the uploading speeds can be up to 50Mbps .

Send the captured file to E-mail, appointed FTP (SFTP) or MinMax Outdoors Camera Cloud System via 4G wireless network.

Connecting with external environment data collection device with the Type-C interface, which accurately detects the ambient temperature, humidity and light intensity of the environment where the camera located, collects data automatically and upload the data to the MinMax Outdoors camera cloud system at preset time every day.

SMS remote control supports to change the camera settings, trigger camera remotely and control camera to send back full size picture by sending SMS command.

Research and develop MinMax Outdoors Camera Cloud System exclusively in the industry, the picture and video taken by the camera can be directly uploaded to the MinMax Outdoors Camera Cloud System server through the 4G network. Users can manage the photo and video taken by the camera through the MinMax Outdoors Camera Cloud System.

FTP uploading function, camera uploads the file to appointed FTP or SFTP after shooting, users can download the picture or video from FTP.

NTP update time, when the 4G sending status is in off mode and the workable SIM card is inserted, turn the camera to TEST mode, or when the NTP/ GPS positioning time is reached in ON mode, the camera will automatically search for NTP positioning, and update the camera time after NTP positioning successfully.

GPS positioning, when the 4G sending status is not in off mode, turn the camera to TEST mode, or when the NTP/ GPS positioning time is reached in ON mode, the camera will automatically search for GPS positioning, then update the GPS coordinates and camera time after positioning successfully.

Cam + Video mode enables camera to take both picture and video at every trigger.

Burst shooting with 1 second interval.

Photo encryption function (need to upgrade software with encryption function), the photos captured are automatically encrypted and only can be viewed after decrypted by decryption software.

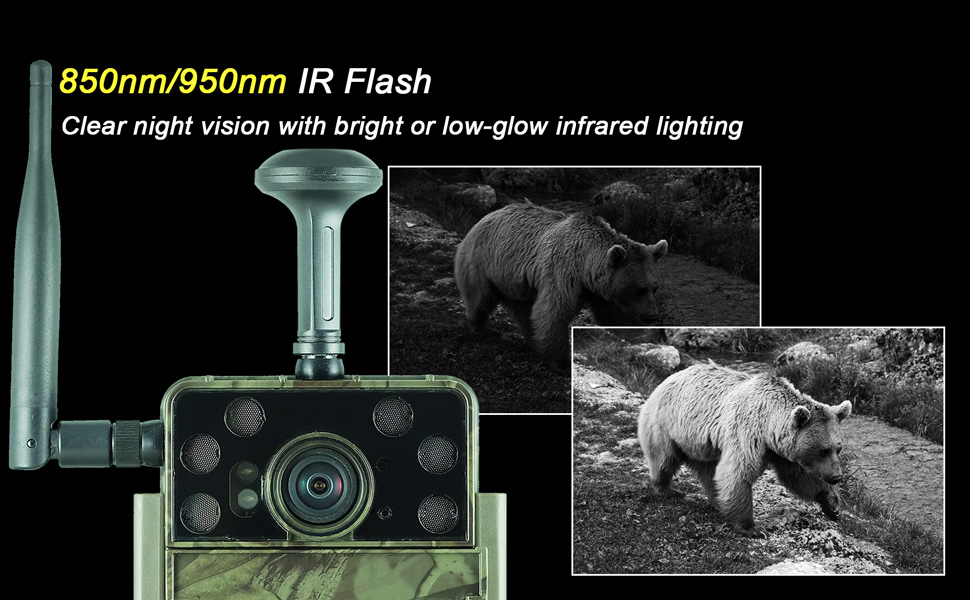

6 super bright 850nm or 940nm IR LED lights for great night vision.

Ultra-long standby time: more than 3 years with 6 18650 lithium batteries.

Working temperature: -40℃ ~ +70℃.

Tight waterproof housing: IP68.

Patent technology of Low Power PIR Pyroelectric Infrared Sensor, the camera detects animals in advance from wide scope in two stages, then quickly trigger to shoot, standby current is about 80uA, makes it to be the pioneer in the industry.

Quick trigger time (0.8 seconds). Two high accuracy timers make the camera work in two specified periods as request.

Set an ID for the camera, the prefix of file name could be same as the ID, makes it easy to classify the pictures from different place.

Picture stamp for rich information, shows shooting date, time, latitude and longitude, temperature and month phase, etc.

Password protected to prevent unauthorized operation.

Optional memory overwrite function: delete the early pictures or videos automatically to make room for new records.

Security box is optional for purchase.

Support to fix by tripod.

Supports to operate with 2G GSM/3G CDWMA/4G LTE networks globally

Description

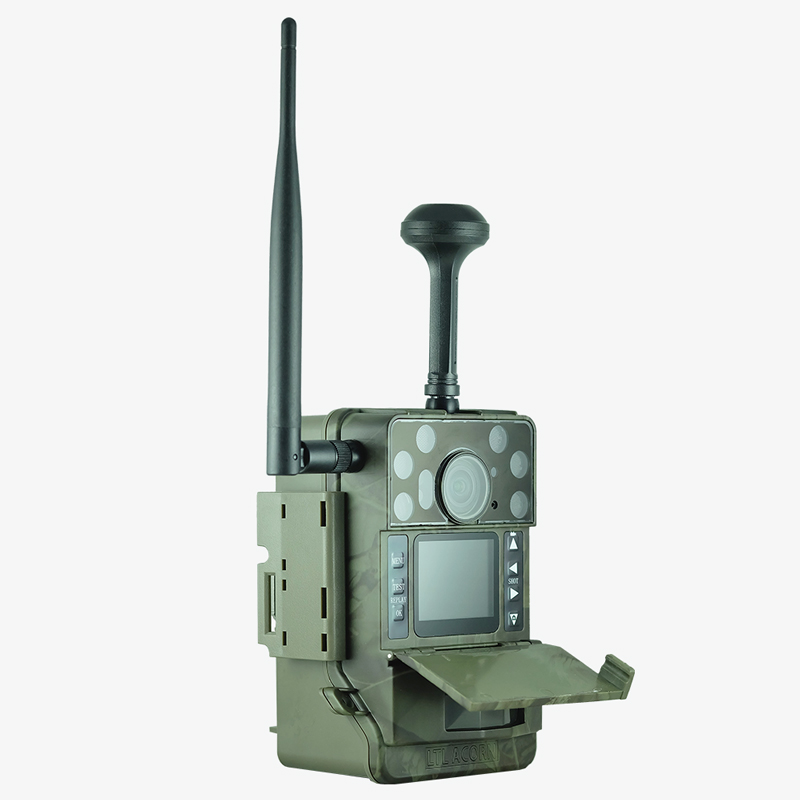

Model: Ltl-6630-4G
Image Sensor: 14 Mega Pixels BSI CMOS sensor
Lens: FOV=60°; F=1.6 Auto IR-Cut
IR Flash: 6 ultra-high brightness LED lights (940nm, 850nm, white light; optional)
Auto IR Adjustment:
Automatically adjust brightness of IR LED in black and white video, reduce current after about 10s to lower power consumption.

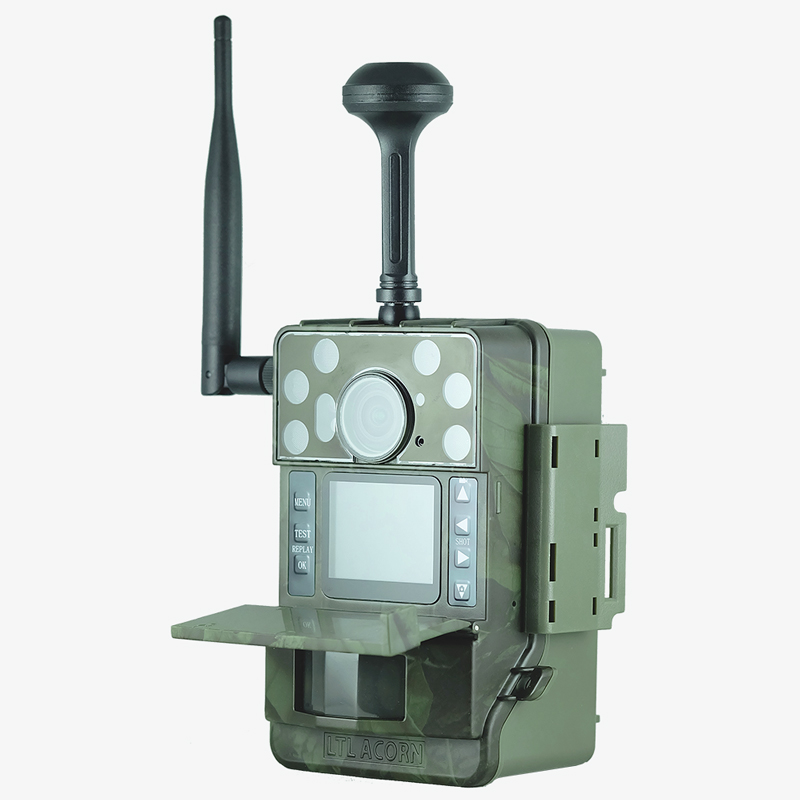

Built-in LCD Screen: (2.0″) ; 480(RGB)*240DOT;16.7M Color
Operation Keypad: 7 Keys
Memory Card:
It is recommended to use genuine 32GB Kingston SD card, other SD cards are not guaranteed to be stable
Picture Size: 30MP(6400×4800),14MP(4416×3312)
10MP(4416×2484), 3MP(2048×1536)
Video Resolution: 1080P(1920X1080)30fps; 720P(1280X720)30fps;
VGA(640X480)30fps ;(Black and white video 15fps)
PIR Sensitivity: High/ Normal/ Low/ Off
PIR Sensing Distance: Up to 35 meters (below 25℃ at the Normal sensitivity)
PIR Sensing Angle: 15~100 degrees according to the distance of the target
Operation Mode: Day/ Night
Time from trigger to finish shooting: 0.8 Seconds
Night Shooting Distance:
White light flashes 25 meters
850nm infrared LED flashes 25 meters
940nm infrared LED flashes 20 meters
Trigger Interval: 0sec – 60min; Programmable
Photo Burst: 1~3
Video Length: 2~60sec ; Auto (2~30 seconds Automatic adjustment ); Programmable;
Camera + Video: First take Picture then Video
Time Stamp: On/Off;
Includes serial number, longitude and latitude,
temperature, moon phase, date and time
Timer1: On/Off; Programmable
Timer2: On/Off; Programmable
Password: 4 Digits (0~9)
Serial No.: 4 digits and alphabets (0~9, A~Z)
Time Lapse: Off/ On; 0 Sec~23 Hour 59 Min 59 Sec; Programmable
Beep Sound: On/ Off
SD Cycle: On/ Off
SMS remote control shooting command:
Send the text of command 60/61 or 62 on mobile, after receiving command, the camera will take photo, video or shoot as preset according to the command, then send it to the E-mail.
SMS remote control time:
The interval to receive SMS messages can be set from 1 to 24 hours. For example: set interval as 1 hour, Send the text of command 60/61 or 62 on mobile, camera can receive SMS command and transmit the image file within 1 hour.
The module normally cuts off the power and does not consume power, it will work after camera shooting and then transmit the image file.
Function of immediate transmission of original image:
Send image to the preset receiving end immediately after finishing shooting.
Remotely modify camera parameters intensively:
Set the camera parameters and remotely modify on the Ltl Camera Cloud System: when the camera uploads images to the Ltl Camera Cloud System, it reads the parameter settings generated by the Ltl Camera Cloud System and takes effect at next time when the camera works.
Wireless Send Options:
Email, FTP, Ltl Camera Cloud System, Off=doesn’t send file to E-mail/FTP/ Ltl Camera Cloud System; programmable; Send picture and video, no limited size of video file, a video of 60s is about 120M usually.
Email Recipient E-mail Address: 1~2 E-mail Addresses
Sender E-mail: 1 Sender E-mail Address
Remote Control: 1 Remote Recipient Phone Number, 1 Remote Receiver E-mail
Recipient FTP Setting: FTP or SFTP Server Setting
Ltl Camera Cloud System: It has the functions of receiving and managing image files, identifying common animal species, setting the parameters of the Ltl Camera Cloud System, and displaying the actual position of camera on the map, etc.
Ltl Camera Cloud System APP:
Use the Android/iPhone Ltl Camera Cloud System APP to visit Ltl Camera Cloud System on mobile.

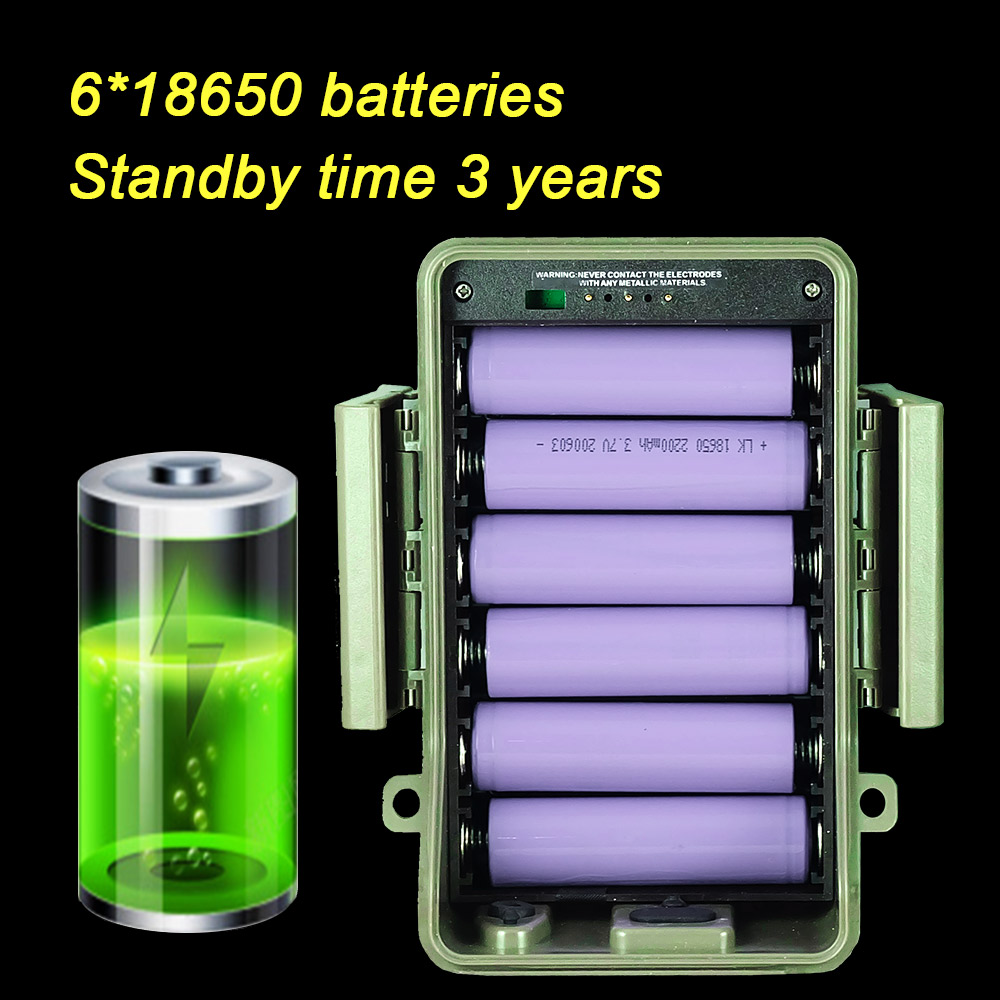

Power Supply: 6 x 18650 Lithium Battery
Standby time (4G module is closed):
3 year (6 x 18650 Lithium Battery)
Auto Power Off: Auto power off in 4 minutes without any operation in TEST mode.
Power Consumption: 280mA(+670mA when 940nm IR LED up; +600mA when white light or 850nm IR LED up)
Interface: Type -C socket; SD Card Slot; SIM Card Slot; DC External；

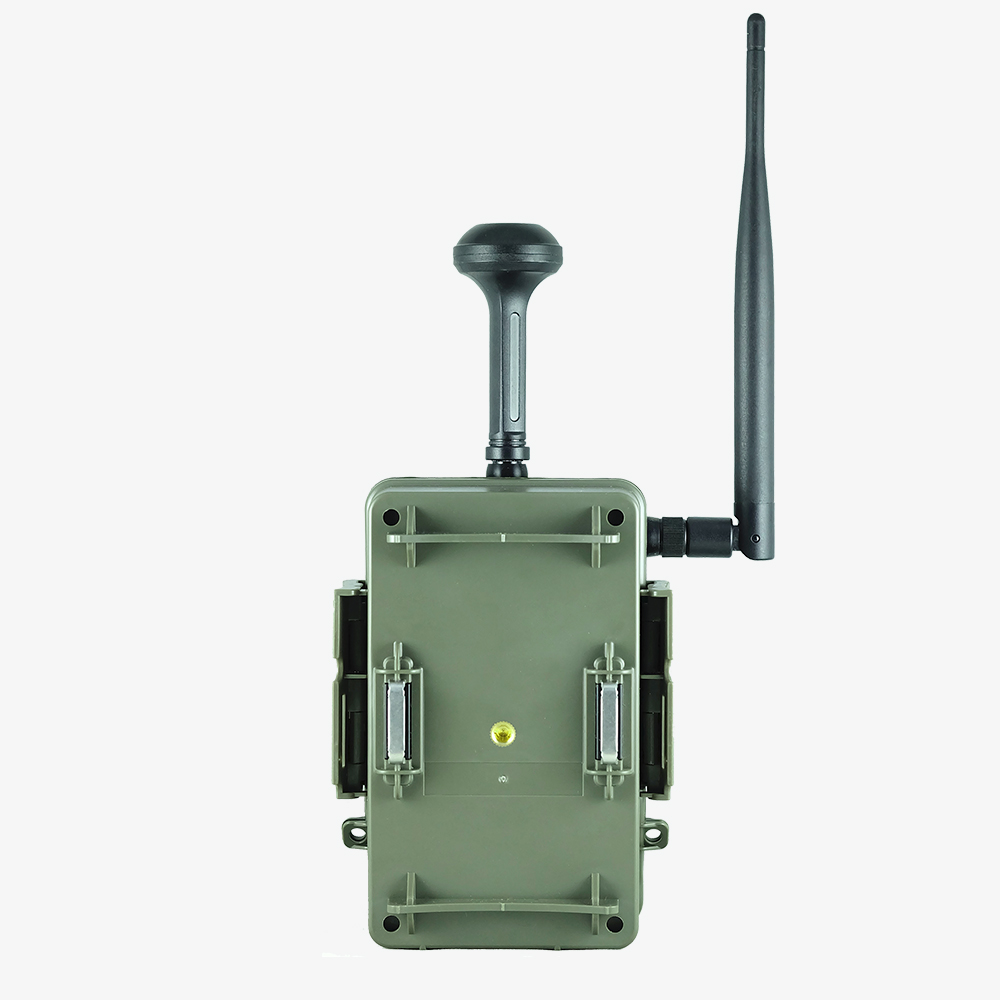

Mounting: Strap; Tripod; Conical Plastic Pillar
Ingress Protection: IP68
Working Temperature: -40℃ ~ +70℃
Working Humidity: 5% ~ 95%
Certificate: CE & RoHS
Package Contents:
Digital Camera *1
Strap *1
GPS Antenna *1
Warranty Card *1
